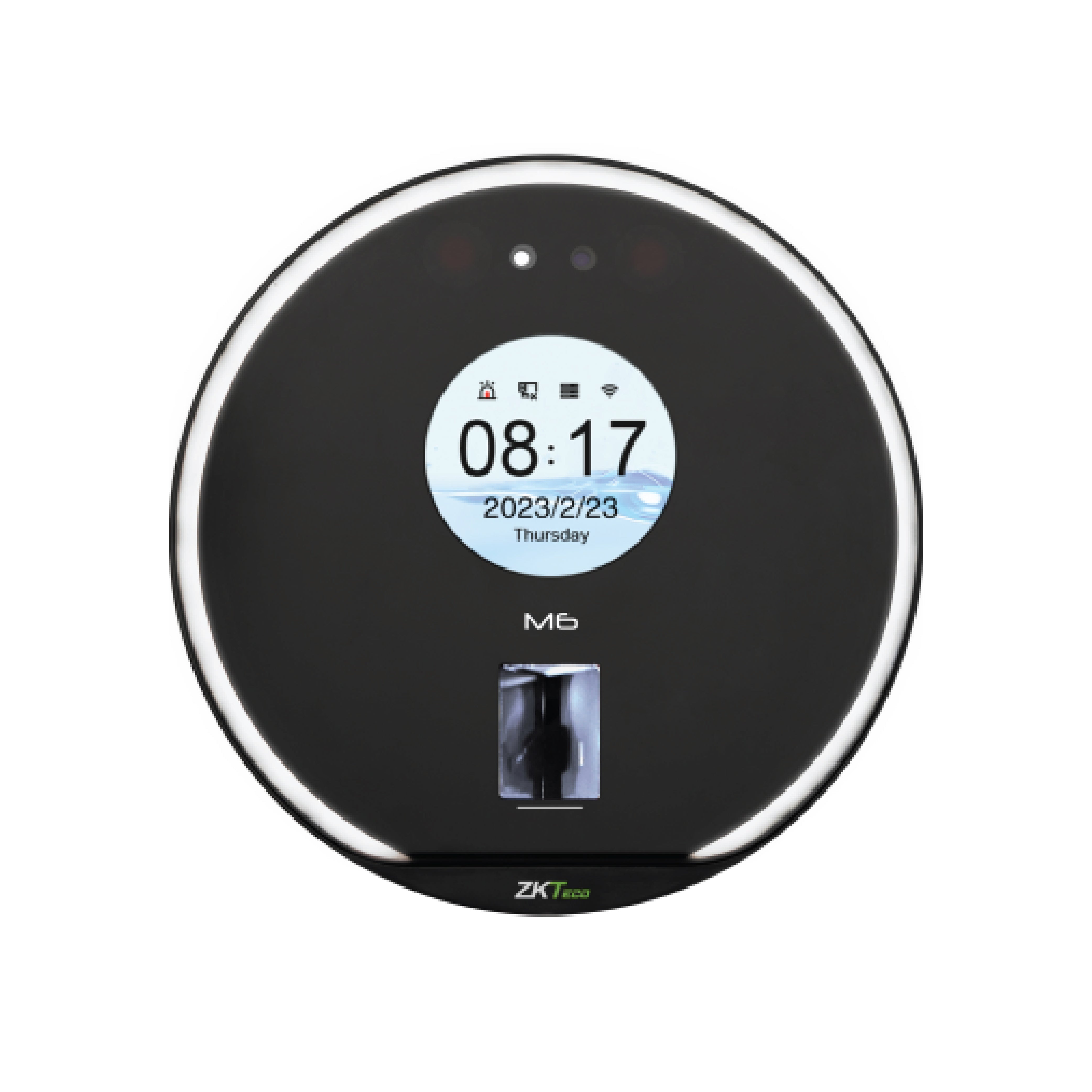

ZKTeco M6 Attendence and Access Control Terminal

ZKTeco's M6 is a time & attendance terminal with multi-biometrics authentications and supportsconnecting BioTime Cloud. Also, M6 adopts the facial recognition technology and equips with the in-glass fingerprint verification method, providing an all-rounded time and attendancemanagement.

When M6 connects to BioTime Cloud, users can enjoy many features, including remote user registration and real-time reporting. Additionally, with BioTime Cloud, users can create flexible timesheets through M6, setting up timetables with multiple report formats to satisfy various time and attendance management needs.

• Visible light facial recognition technology and in-glass fingerprint verification

• Multiple authentication methods: Face / Fingerprint / Card

• Card modules: 125kHz ID Card (EM) / 13.56MHz IC Card

• Communication: TCP/IP / 2.4GHz Wi-Fi / Bluetooth 4.2

• Supports simple access control function

• Wall-mounted and desktop-mounted; 2-in-1 backplate design

• Compatible with BioTime Cloud Cloud-Based Software & ZKBio TimeCloud Mobile App



  Display	2.8’’ Non-touch LCD Display (40mm circular display area), 240x320 Pixel
  Face Capacity	3,000
  Fingerprint Capacity	3,000
  Card Capacity	3,000
  Transactions	150,000
  Communication	TCP/IP, 2.4GHz Wi-Fi (IEEE 802.11b/g/n), Bluetooth 4.2
  Standard Functions	ADMS, DST, T9 Input, Camera, 14-digit User ID, Multiple Verification Methods
  HardWare	1.0GHZ Dual Core A7 CPU, 256MB RAM/512MB ROM, 1MP Binocular Camera
  Access Control Interface	3rd Party Electric Lock, Door Sensor, Exit Button
  Optional Functions	125kHz ID Card (EM) / 13.56MHz IC Card
  Biometrics Algorithm	ZKFace VX3.5 & ZKFinger V10.0
  Facial Recognition Speed	1s
  Facial Recognition Distance	0.3 to 1.6m
  Facial Recognition Rate	FAR < 0.001%; FRR < 1%
  Supported Software	BioTime Cloud
  Power Supply	12V / 1.5A
  Working Humidity	20% to 80%
  Working Temperature	0°C to 45°C
  Dimensions (mm)	124.92 * 27.1 (Diameter*Width)
